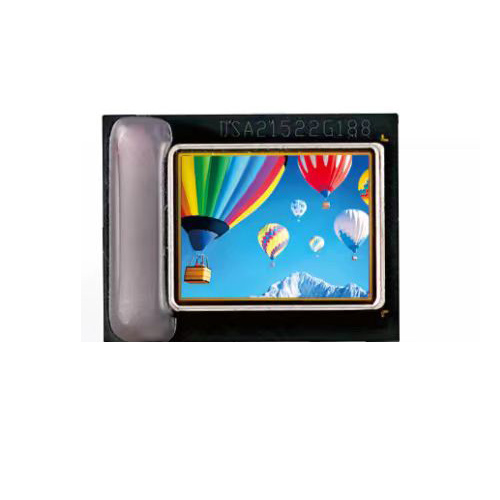

0.71 inch Infrared Night Vision Device Core
Located in Shenzhen, China, Shenzhen Optical Microsemiconductor Technology Co., Ltd. is a company that specializes in the creation and production of optical and semiconductor technologies. The 1.8 cm (0.71 type) diagonal, active matrix color Micro OLED panel module with 1920 (RGB) 1080 dot resolution is used in the 0.71 inch Infrared Night Vision Device Core made by Optical Microsemiconductor. In order to achieve small size, thinness, and high definition, the panel integrates a panel driver and a logic driver.
Send Inquiry
Product Description
This 0.71 inch infrared night vision device core is used in a variety of products, including head-mounted entertainment systems, digital cameras and camcorders, portable mini projectors, video glasses, and 3D displays. Additionally, it can be used for military and security surveillance applications, such as in flight helmet displays, electronic telescopes, infrared night vision, gun sights, thermal imaging displays, and life detection video equipment.
Parameters of 0.71 Inch Infrared Night Vision Device Core
| Display Size | 0.71 inch |
| Resolution | 1920×1080 |
| Maximum brightness | 5000cd/m2 |
| Display Color | Full Color |
| Interface | MIPI |
| Color Pixel Arrangement | scalene hexagon |
| Active Area | 15.94mm×9.04mm |
Specifications of 0.71 Inch Infrared Night Vision Device Core
●Active Pixels: 1920×1080（FHD）
●I²C +MIPI（2/3/4lanes）
●Up to 90Hz frame rate
●Color space conversion,Contrast and brightness adjustment
●Built-in OTP for gamma correction,Support temperature compensation for VCOM with internal temperature sensor
●Applications: A variety of miniaturized, high PPI, low power consumption and wide operating temperature range of near-eye display system
●I²C +MIPI（2/3/4lanes）
●Up to 90Hz frame rate
●Color space conversion,Contrast and brightness adjustment
●Built-in OTP for gamma correction,Support temperature compensation for VCOM with internal temperature sensor
●Applications: A variety of miniaturized, high PPI, low power consumption and wide operating temperature range of near-eye display system
