0.60 inch MR Glasses Display
  • 0.60 inch MR Glasses Display0.60 inch MR Glasses Display

0.60 inch MR Glasses Display

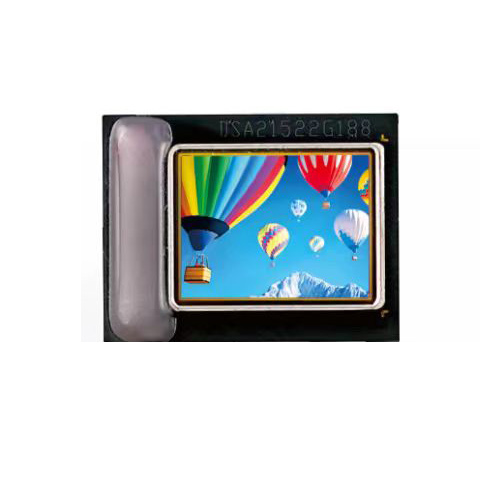

The 0.60 inch MR Glasses Display by Shenzhen Optical Microsemiconductor Technology Co, Ltd. is a 1.5 cm (0.60 type) diagonal panel that is tiny and lightweight. It has an active matrix color Micro OLED screen module with an 800 (RGB) 600 dot resolution. The usage of single crystal silicon transistors contributes to the image display's clarity and excellent quality. The display merges panel and logic drivers, allowing for a compact form factor while maintaining high performance.

Send Inquiry

Product Description

By capturing and displaying infrared radiation that things generate, this 0.60 inch MR Glasses Display makes it possible to see well even in total darkness. It has cutting-edge imaging hardware that transforms infrared impulses into visible images on a tiny screen. It makes it possible to distinguish between objects and features in low-light situations thanks to its high resolution and contrast.Applications for the Infrared Night Vision Device Core include situational awareness, target acquisition, nighttime surveillance, military operations, and security monitoring. It can be integrated into portable equipment like handheld devices or helmets due to its small size and light weight.

Parameters of 0.60 inch MR Glasses Display

Display Size 0.60 inch
Resolution 800×600
Maximum brightness 3000  cd/m²
Display Color Full Color
Interface RGB
Color Pixel Arrangement vertical RGB strip
Active Area 15.19mm×14.36mm

Specifications of 0.60 inch MR Glasses Display

. Active Pixels : 800×600(SVGA)
. Standard digital video input :Support 24bit RGB、8/16bit YCbCr
. Frame Rate :25Hz~120Hz
. Color space conversion ,Contrast and brightness adjustment
. Built-in VCOM generator,low power consumption
. Built-in EEPROM、Gamma Correction, Support temperature compensation for VCOM with internal temperature sensor
. Applications : A variety of miniaturized, high PPI, low power consumption and wide operating temperature range of near-eye display system
