0.60 inch Digital Night Vision Scope
  • 0.60 inch Digital Night Vision Scope0.60 inch Digital Night Vision Scope

0.60 inch Digital Night Vision Scope

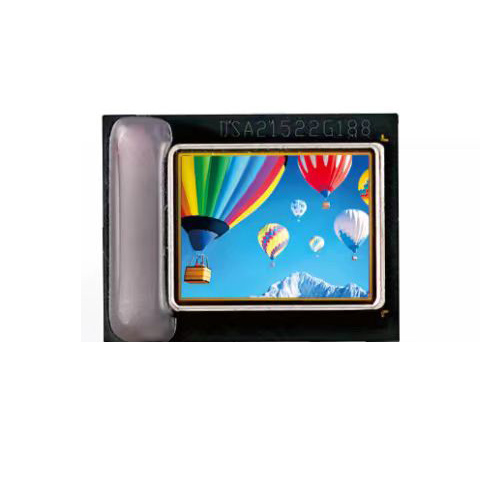

A 1.5 cm (0.60 type) diagonal, 800 (RGB), 600 dot active matrix color OLED panel module with single crystal silicon transistors is used for the Night Vision Display. The 0.60 inch Digital Night Vision Scope produced by Shenzhen Optical Microsemiconductor Technology Co, Ltd. integrates panel drivers with logic drivers for small size, light weight, and clarity.

Send Inquiry

Product Description

The 0.60 inch Digital Night Vision Scope is a small, lightweight tool used largely in military and security monitoring applications. It makes use of infrared technology to offer a clear image in dim or no light environments. It is frequently used in personal helmet displays, electronic telescopes, infrared night vision equipment, thermal imagers, and sights.

Parameters of 0.60 inch Digital Night Vision Scope

Display Size 0.60 inch
Resolution 800×600
Maximum brightness 3000  cd/m²
Display Color Full Color
Interface RGB
Color Pixel Arrangement vertical RGB strip
Active Area 15.19mm×14.36mm

Specifications of 0.60 inch Digital Night Vision Scope

●Active Pixels: The scope features a resolution of 800x600 (SVGA).
●Digital Video Input: It supports standard digital video input, including 24-bit RGB and 8/16-bit YCbCr.
●Frame Rate: The scope offers a frame rate ranging from 25Hz to 120Hz.
●Color Space Conversion and Adjustment: It incorporates color space conversion and allows for contrast and brightness adjustment.
●Built-in VCOM Generator: The scope includes a built-in VCOM generator.
●EEPROM and Gamma Correction: It is equipped with an EEPROM and supports gamma correction.
●Temperature Compensation: The scope includes temperature compensation for VCOM.
●Applications: The scope is designed for a variety of applications, particularly in miniaturized near-eye display systems. It offers high pixel density, low power consumption, and can operate in a wide temperature range.
●Infrared Night Vision: This scope excels in infrared night vision applications, providing enhanced visibility in low-light or no-light conditions. It is suitable for security monitoring, military operations, surveillance, and other related purposes.
